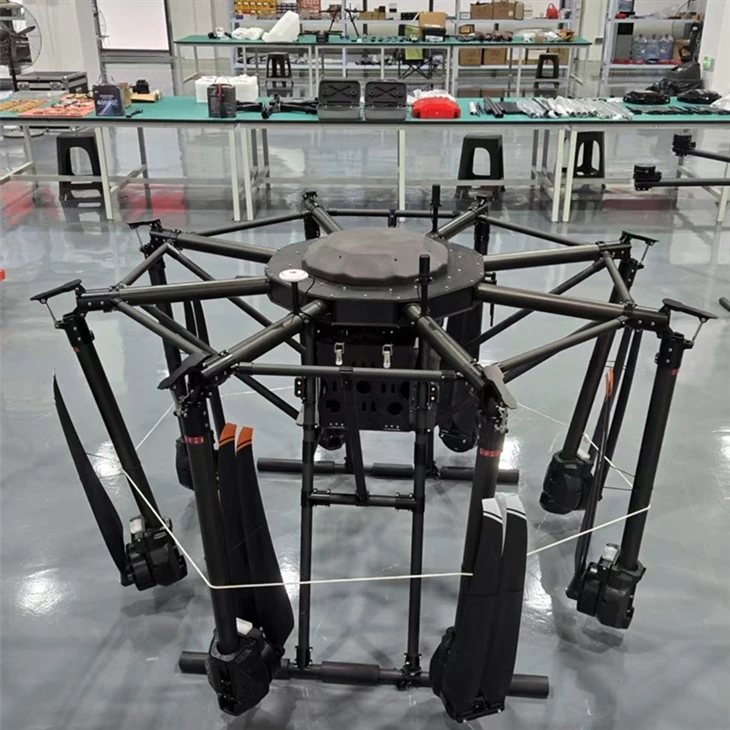

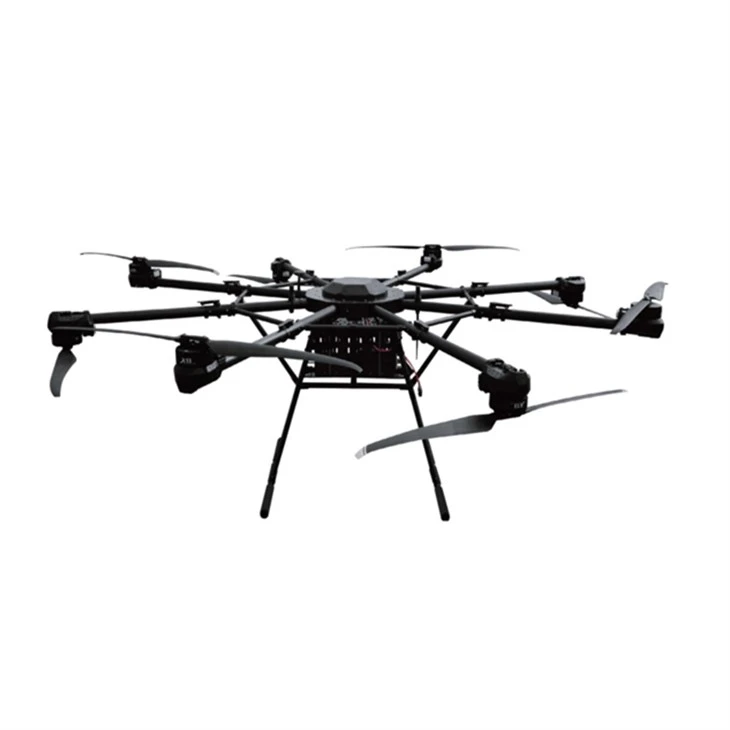

The ZK-D100 is a multi-rotor drone express delivery aircraft. The frame is constructed from aerospace-grade carbon fiber and aluminum alloy, featuring a modular, foldable design for ease of use, long endurance, ample power redundancy, high wind resistance, moderate rain protection, and stable reliability.
The ZK-D100 drone express delivery UAV uses 50mm thickened carbon fiber arms, providing excellent impact resistance. It can also operate beyond visual line of sight and is equipped with a night navigation light, and comes with four pieces 18s high-capacity batteries. Super-fast charging allows it to be fully charged in 15 minutes. It can fly 10km round trip with a 150kg payload, requiring only one battery replacement, making operation convenient and efficient.
The ZK-D100 drone express delivery airplane can operate fully autonomously, planning its own routes. payload capability up to 100kg, it is well-suited for emergency deliveries and urgent material transport. It also features an intelligent lifting system and optional RTK for higher operational precision. It employs an efficient point-to-point delivery model. Logistics station staff can preset flight routes and initiate takeoff with a single button. This all-terrain drone delivery service is suitable for a variety of critical application scenarios, from emergency supplies transportation to commercial last-mile logistics, including emergency supplies transportation and last 100-meter delivery.
Key Specification
|
Model No. |
ZK-D100 |
Max payload |
100kg |
|
Folded size |
170x170x110cm |
Max take-off weight |
215kg |
|
Wheelbase |
323cm |
Max flight speed |
12m/s |
|
Rotor structure |
X8 |
Safe takeoff and landing wind speed |
≤ level 7 |
|
Power system |
X13 |
Propeller |
56-inch foldable paddle |
|
Application |
Lifting/transportation/material delivery, etc. |
Positioning system |
BeiDou/GPS/Galileo/GLONASS |
|
Beyond visual line of sight (BVLOS) operation |
support |
Flight control | dual IMUs, backup GNSS |
|
Flight altitude |
≤5000m |
Working temperature | 43–46 °C (can work in desert and other similar harsh environments) |
Optional Accessories
UAV Accessories
Drone delivery mode : A-B-A model
- Loading: Delivery station staff place the goods to be delivered into the drone's delivery box and set the flight path.

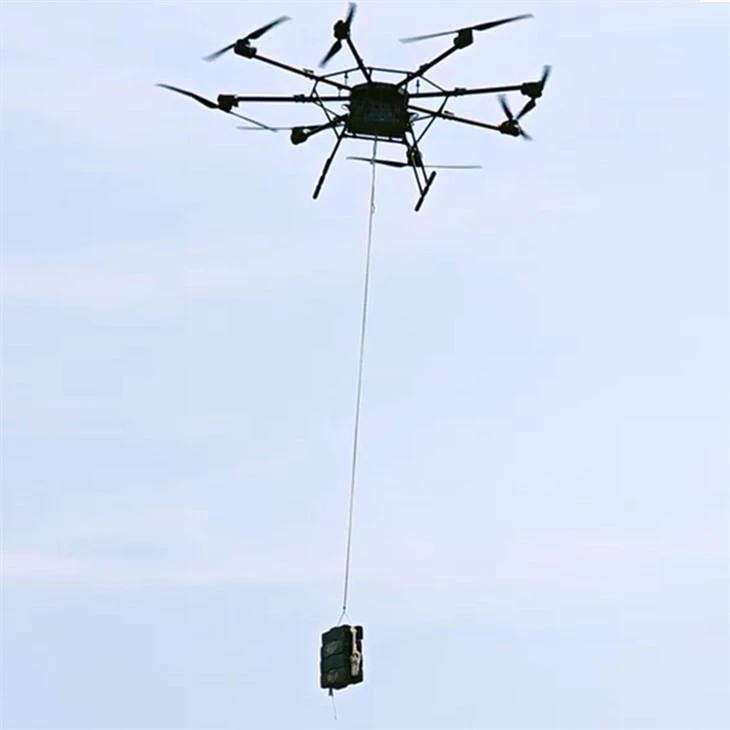

- Drone Flight: Using the ground station software, the drone takes off with a single click and flies along the pre-set route, dropping the goods at point B, and then automatically returns to point A (the delivery station). The drone's delivery task is complete.
- Last 100 Meters Delivery: The delivery person receives the goods at point B and then delivers them individually to the end customers.
Product Advantages
Customization Capability : Payload can be customized upon request.

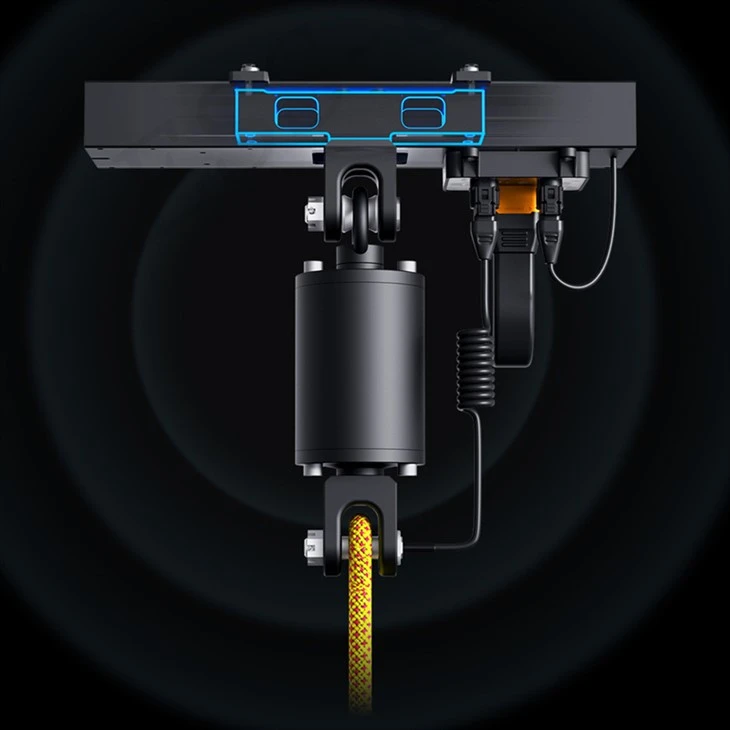

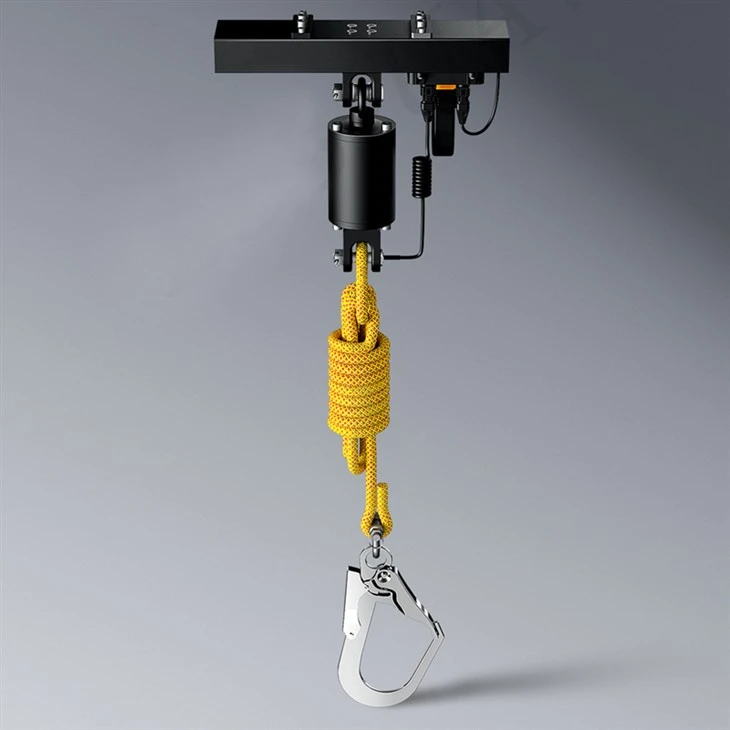

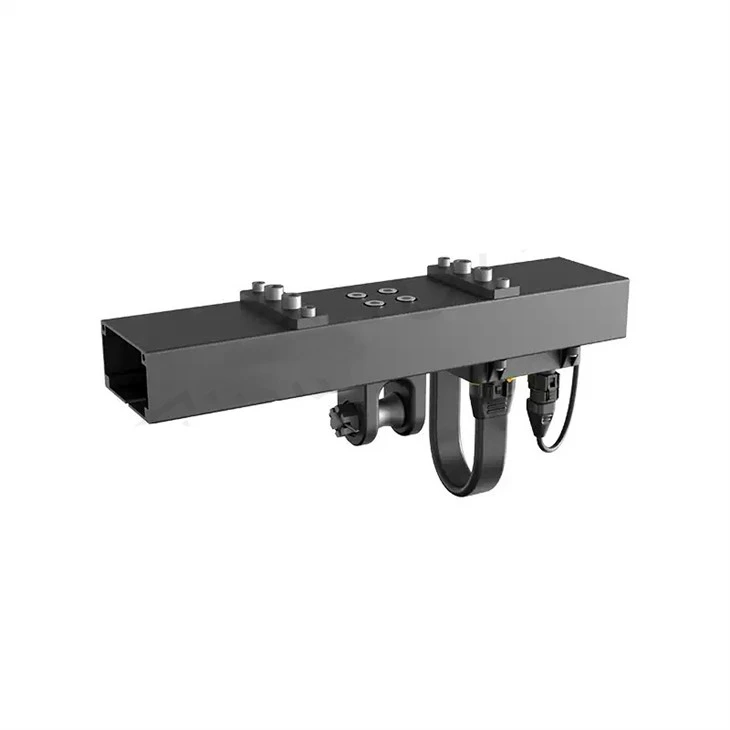

Intelligent Lifting System Kit: collision avoidance system, emergency landing system, hoisting system.
Real-Time Weighing Function: can display the weight of the lifted materials in real time.
Shock Absorber: The lifting system is equipped with a shock absorber, which can effectively reduce instantaneous pulling force when encountering swaying during takeoff and flight, ensuring flight stability.

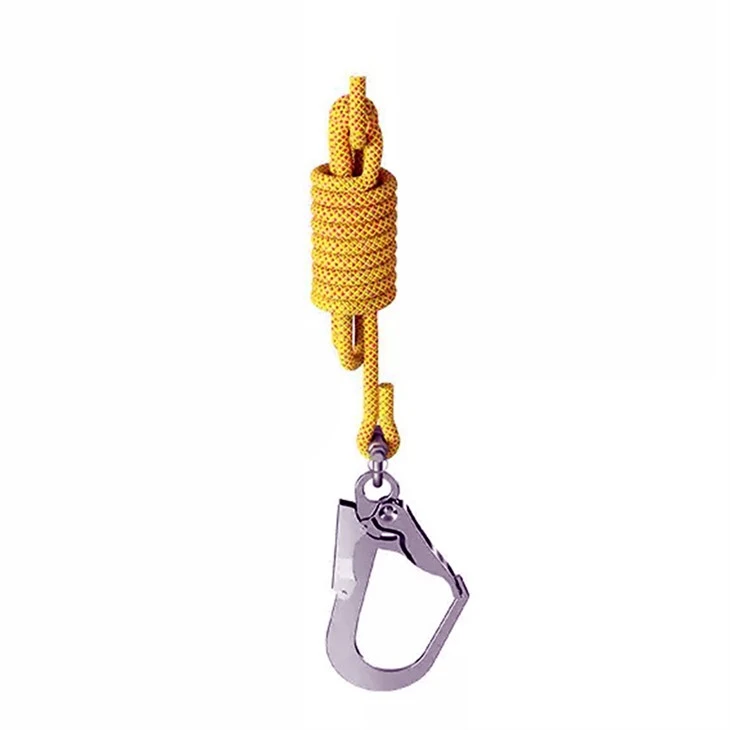

Emergency fuse function: If the drone encounters obstacles and needs to be urgently freed during lifting, the one-button fuse function can be activated to immediately cut the lifting connection rope, reducing losses and ensuring safety.
Equipped with a 1080P high-definition gimbal,video transmission capabilities, and night flight functionality, it can operate normally even at night, ensuring flight safety.
Optional Functions Available Upon Request: RTK,waveform radar,radar obstacle avoidance can be added.
Three Flight Modes : based on requirements, can choose either manual mode,smart mode or fully automatic mode.
Technical Support & After-Sales Service
- Free replacement provided within warranty period for non-human caused damage if any defects been found after the receipt of the drone
- Practical Training course provided upon request and issue CAAC certificate
- Tutorial working video provided upon request
- Dedicated after-sales online WeChat group for technical communication support.
Application
Our Logistics drones are widely used for serving both the following urban and rural areas.
|
Customer Attributes |
Industry Sectors |
Cooperative Case |
Application Scenarios |
|
Efficiency & timeliness |
E-commerce,retail |
JD,Meituan,Supermarkets |
Food,groceries,takeout |
|
Special geographical & scenario needs |
Healthcare |
Hospitals, disease control centers, and pharmaceutical companies |
Transporting blood, vaccines, and emergency medications. |
|
Special geographical & scenario needs |
Agricultural and Rural Logistics |
Agricultural and Rural Logistics |
1.Agricultural Products Out of Villages 2.Delivery of express packages, daily necessities, meal assistance for the elderly, etc. |
|
Specific industries |
High-end manufacturing and supply chains |
Large manufacturing enterprises (such as CATL and BYD), high-tech factories |
Transferring high-value components, samples, and documents between production bases or warehouses. |
|
Emergency and special mission |
Government and public utilities |
Emergency management departments, public security, fire departments, power grid companies |
Delivering relief supplies to disaster areas or areas with blocked roads. Transporting tools or spare parts for power grid and oil and gas pipeline inspections. |
A Standard Set Include
- 1.Lifting drone*1
- 2.Remote control*1
- 3.Smart charger*1
- 4.Drone battery*4
- 5.Lifting system kit*1
