The ZK-D5 fedex delivery drone is a new multifunctional logistics drone,equipped with high-precision RTK, capable of centimeter level positioning, conventional 5kg, wide distribu-tion range, radius up to 8km, capable of covering most scenarios, supporting remote point-to-point controlby multiple people, 4G dual datalink, more stable and reliable connection, low latency, foldable to smallvolume, as well as laser obstacle avoidance, bottom lighting, shouting and other functions.
The core features of this Fedex Delivery Drone is that it's equipped an advanced C13 three-camera gimbal, integrating a 5-megapixel 30x digital zoom 2K high-definition visible light camera, a 640 high-resolution thermal imaging sensor, and a high-precision laser rangefinder with a measurement range of up to 1000 meters, allowing it to simultaneously capture distant details, clearly observe heat sources, and perform fast and accurate distance measurements. The system supports multi-person remote point-to-point control and real-time viewing, enhancing collaborative work capabilities. This fedex delivery drone is equipped with a G20 remote controller, dual-band automatic switching, and a 22000mAh high-capacity battery, providing a maximum flight time of approximately 60 minutes (unloaded), fully meeting the diverse professional needs of industries such as inspection, surveying, firefighting, and transportation.
Key Specification
|
Model No. |
ZK-D5 |
Max payload |
5kg |
|
|
Dimension |
73.5x69x28cm |
Max take-off weight |
13kg (near sea level) |
|
|
Wheelbase |
92cm |
Max flight speed |
20m/s (windless environment) |
|
|
Drone weight |
4.82kg |
Max range |
30km(without load) |
|
|
Operating temperature |
-10°C to 55°C |
Flight time |
1 hour (without load) |
|
|
Operating frequency |
2.4GHz/4GHz |
RF power |
maximum 24dBm |
|
|
Hovering accuracy |
autonomous: 2.0mCEP DGNSS: 0.5mCEP, RTK: 2cm + 1ppm |
Input voltage |
12S (50.4V) |
|
|
Remote Control Parameters |
||||
|
Display |
7-inch industrial touchscreen + sunlight-readable screen |
|||
|
Processor |
Qualcomm 6nm processor |
|||
|
Dimension |
277(L)*138(M)*96(H)mm |
|||
|
Operating frequency band |
2.4GHz | 5.8GHz |
|||
|
Max remote control distance |
30km (Ground-to-air, line-of-sight) |
|||
|
Resolution |
1920*1200 |
|||
|
Operating temperature |
-10°C to 55°C |
|||
|
External interfaces |
USB port, SIM card slot, TYPE-C |
|||
Products Features

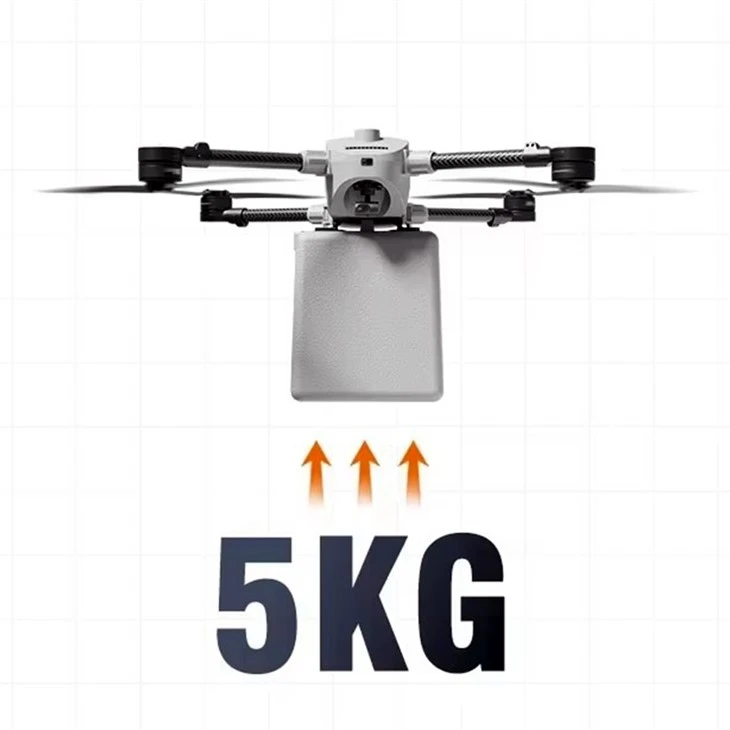

5kg delivery Drone
built for point-to-point transportation & fixed-point cruising
Why Choose This Drone ?
High-Resolution Thermal Imaging Camera 640: ability to observe various heat sources at long distances clearly and widely.
C13 Tri-Light Gimbal: three-axis gimbal integrating a 5MP 30x digital zoom visible light camera, a 640mm thermal imaging sensor, and a laser rangefinder module.
Laser Rangefinder: its measuring distances up to 1000 meters with high precision, speed, low error, and highly-efficient.
High-Precision RTK: centimeter-level positioning.
30KM Flight Range: Capable of flying 30KM unloaded and 15KM fully loaded, can meet the needs of various industries.
Low-Latency: 4G dual-link ensure stability and reliability during working
Laser Obstacle Avoidance: It can effectively avoid obstacles even in low light conditions or when there is mirror reflection.
Two high-intensity searchlights ensure easy operation even in low-light conditions.
Automatic Noise Reduction Function: Built-in high-volume loudspeaker at the bottom, providing clear and full sound with a volume of up to 120 decibels, allowing for communication over a distance of nearly 100 meters.
High anti-interference capability:The remote control is equipped with dual 2.4GHz and 5.8GHz frequency bands, which can automatically switch depending on the operating environment.
Unique Digital Image Transmission &Control Link Technology : enable the image transmission range reaches up to 30km.
Details Show
low-altitude distribution services
For short-distance, small-batch, high-frequency, and emergencyservices within the same city at the end.
Package Include
- Charger x 1
- Battery x 1
- Propeller blades x 3 packs
- Remote control x 1
- Aircraft body x 1
