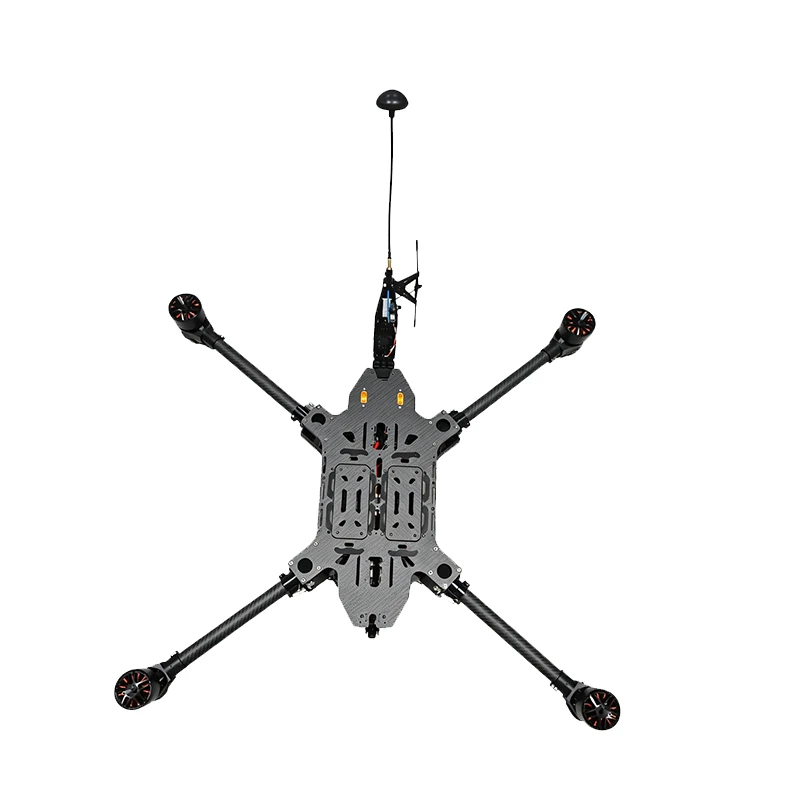

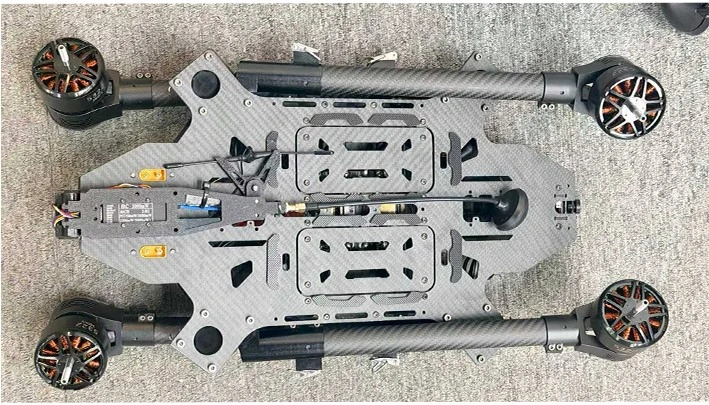

The 18 inch foldable FPV drone offers an immersive first-person view flying experience, featuring agile and stable flight performance suitable for a wide range of mission scenarios. It features an 18-inch foldable airframe design with a wheelbase of 970 millimeters, constructed from high-quality 3K T300 carbon fiber. The platform is equipped with high-efficiency 6218 200KV motors, paired with 18-inch fiberglass-nylon propellers and a 120A 4-in-1 ESC. It can reach a maximum takeoff altitude of 5,000 meters, a top speed of 100 kilometers per hour, and a maximum flight range of 30 kilometers. It comes standard with a high-capacity 12S 22,000 mAh battery.
This 18 inch foldable FPV drone has a maximum payload capacity of 13 kg and a maximum takeoff weight of 27 kg. When equipped with two batteries, it can hover unloaded for up to 38 minutes; with a single battery, flight time ranges from 18 to 20 minutes. The model features a BL F405 flight controller, a 5 W VTX, an ELRS 915 MHz receiver, and a 1500 TVL low-latency FPV camera. This highly integrated configuration ensures reliable long-range control and clear real-time video feedback, making it suitable for long-distance cruising, aerial surveying, and heavy-load operations.
Product Specification
| 18 inch Foldable FPV Drone | |||
| Model No. | ZK-F18 | Wheelbase | 97cm |
| Dimension(folded) | 550*320*160mm | Drone weight | 4.2kg |
| Dimension(unfolded) | 780*720*88mm | Flight control | BL F405 |
| Payload capacity | 13kg(max) | ESC | 120A 4-IN-1 |
| Max takeoff weight | 27kg | Image transmission | 5W |
| Flight distance | 30km | Receiver | ELRS 915MHZ |
| Max flight altitude | 5000m | Camera |
1500 TVL low-latency FPV camera |
| Propeller |
18×6×4 inch (fiberglass-reinforced nylon) |
Motor | 6218 200KV |
| Flight time | 18 mins (12S 22000mAh battery) | Recommended battery | 12S 22000 10-45C XT90 connector |
| Optional size | 15-inch | Flight speed | 100km/hour |
Optional Accessories

01
TX12 Remote Control

02
M8AC Charger

03
UP1200AC PLUS Charger

04
LS-800D Goggles

05
FPV Drone Display

06
Lipo 12S 22000mAh XT90

07
Lipo 8S 8000mAh XT60

08
Lipo 6S 8000mAh XT60
Application
These types of FPV drones are specifically designed for reconnaissance, defense, and inspection missions, among other applications. Their target audience encompasses military projects, government projects, institutional projects, projects by social organizations, and the commercial sector...
Racing FPV Drones VS Defense FPV Drones
|
Comparison Items |
Entry-Level FPV Drone |
Industrial Defense FPV Drone |
| Usage |
racing, stunts, film and TV production |
patrols, security surveillance, special Missions |
|
Paddle Inch |
5 -7 inch | 10-inch above, foldable drone arm design |
| Payload Capacity | <1kg | usually above 5kg |
| Endurance | 3‑8mins | 18-38mins |
| Communication Distance | 1‑5km |
Up to 30 km, ELRS915M anti-jamming data link |
| Flying Modes |
fully manual acro |
manual + GPS hover dual mode |
|
High-Altitude Performance |
poor |
supports a maximum takeoff altitude of 5,000 meters |
|
Fuselage Strength |
lightweight, but not very durable |
high-strength T300 carbon fiber, heavy-duty reinforced structure |
