FPV Attack Drone

FPV Attack Drone

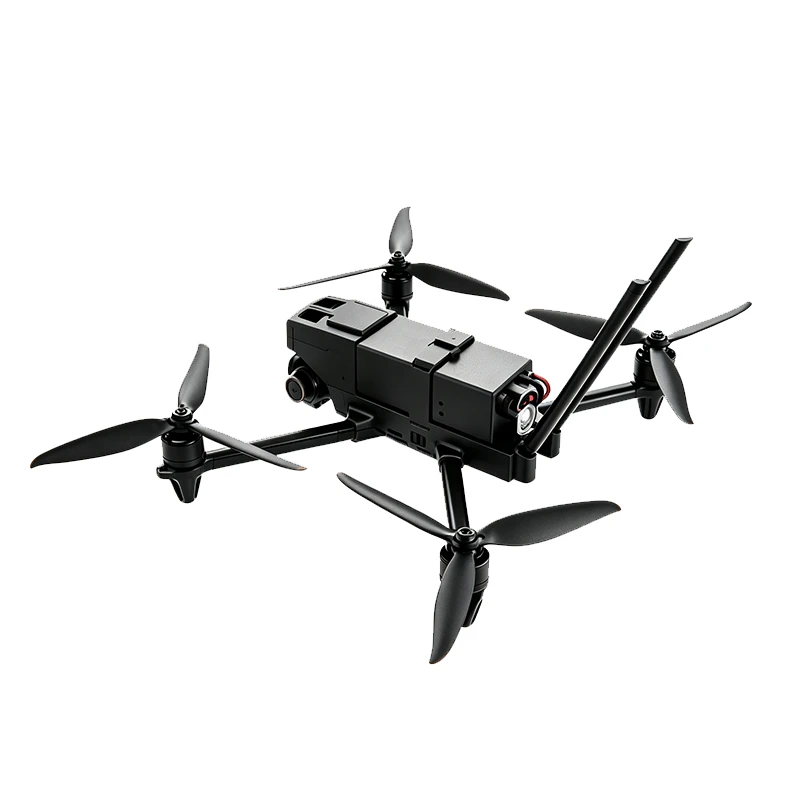

This FPV attack drone features a high-strength carbon fiber fuselage and a foldable frame. It is equipped with an 8000mAh high-capacity battery,a 3kg payload capacity, and a 35-minute unloaded flight time. It boasts a dual-light payload configuration with an integrated visible light and infrared thermal imaging pod, and configured 30x electronic zoom, making it widely applicable for day and night detection, inspection, and defense operations.
Send Inquiry
Description
Technical Parameters

product overview

The FPV attack drone features a high-strength carbon fiber fuselage and a foldable frame. It is equipped with an 8000mAh high-capacity battery, a 3kg payload capacity, and a 35-minute unloaded flight time. It boasts a dual-light payload configuration with an integrated visible light and infrared thermal imaging pod, and a 30x electronic zoom, making it widely applicable for day-and-night detection, inspection, and defense operations.

The biggest highlight of this FPV attack drone product is its target locking and attack capabilities. It enables dynamic tracking by the gimbal camera, allowing for real-time target tracking and capture. During normal flight, selecting a target within the visible light or thermal imaging video window will automatically lock onto the target. Switching to attack mode by toggling the E-channel will then initiate a precise attack. The remote controller features dual-band automatic switching between 2.4GHz and 5.8GHz, ensuring stable operation with low latency and strong anti-interference capabilities.

This FPV attack drone comes with powerful propulsion and a robust fuselage, equipped with 10-inch propellers and a flight speed of 30m/s. It comes with a built-in M10 high-precision GPS chip, and the remote controller utilizes a unique digital image control link technology, enabling control up to 20km away and high-definition digital image transmission, eliminating the static screen of analog drones. In conjunction with a ground station, the aircraft can plan routes, automatically fly to its destination, and automatically return home. The route-planning function is clear and intuitive, helping users complete various complex flight missions.

Product Parameters

FPV Attack Drone -- Overall Specification
Model No. ZK-330T Max ascent/descent speed 10m/s
Drone weight 950g Max horizontal speed(no wind) 30m/s
Dimension(without propeller) 36.9x31.3x8.05cm Max battery life (unload) 35 mins
Dimension(with propeller) 57.8x52.8x8.05cm Working temperature
0-45℃
Wheelbase 43cm GNSS
GPS+GLONASS+Galileo
Propeller size 1050 Working frequency 2.4G/5.8G
Input Voltage 6S (26.1V) RF power
24dBm
Battery 8000mAh Hovering accuracy

horizontal accuracy: ±1 m (when GPS is functioning normally)

Battery weight 815g Max image transmission 20km
Thermal Camera
resolution 384x288 frame rate
≤25Hz
response time
<10ms
focal length
7mm

aperture

F1.0 FOV
24.8°*18.7°

pixel pitch

12μm
spectrum
8~14μm
Visible Light Camera
Camera pixel 5M lens focal length f=3.5~4.75mm
Zoom ratio 30X digital zoom Video transmission resolution
1280*720
Photo resolution
2560*1440
Visible light video recording resolution
2560*1440
Supported storage card micro SD (max 256G) Supported file FAT32



Names Of Aircraft Components

product-800-222

No. Description No. Description
1 propeller 9 binding button
2 motor 10 receiver upgrade interface
3 gimbal camera 11 binding indicator light
4 TF card slot 12 expansion port
5 battery 13 telemetry port (in use)
6 battery strap 14 4-pin interface(no function yet)
7 antenna 15 foot pad
8 battery interface

Lock On And Attack

lock and attack

Lock On And Attack Function

During normal flight, select a target in the visible-light video window or the thermal imaging video window, and the UAV will automatically lock onto it. The visible-light window supports locking onto targets even after 30x digital zoom.

If the white cross in the image above appears, it indicates that the target has been successfully locked on. You can click the icon in the red box on the left to cancel the lock-on.

At this point, toggle Channel E to switch to attack mode, and the drone will automatically fly toward the target and attack it. To cancel the drone's attack, simply switch modes to exit attack mode.

Application


Application Scenarios


Defense, Inspection, Payload...

powerline inspection

powerline inspection

defense

defense

carrying payload

carrying payload

FAQ





FAQ

01.Does it has a missionplanner ?

Yes, it has mission planning function, the video is provided upon request.

02.How many working modes does the drone have ?

Three working modes available: altitude hold mode, GPS mode and attack mode.

03.Can visible and thermal imaging be locked onto simultaneously?

No, it can not be locked at the same time.

04.Can the firmware be updated automatically?

There will be a new firmware shows up on the system of the remote control, just click "update now"to upgrade the firmware.

05.Does the remote control has the English version ?

Yes, it support language switch by operating on the remote control.

06.Do I need to read the manual before using ?

Yes, it is recommended to read the manual before using to avoid crashing.
