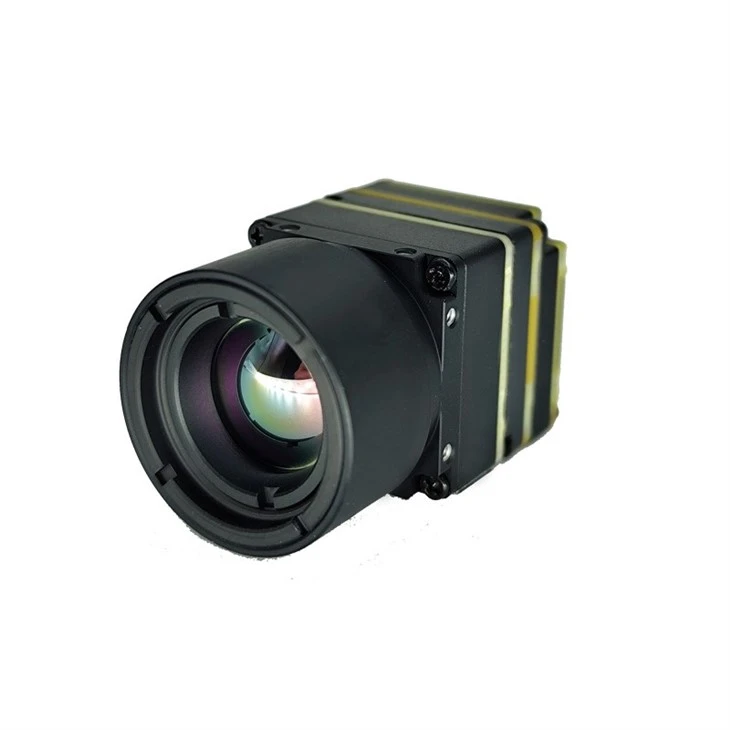

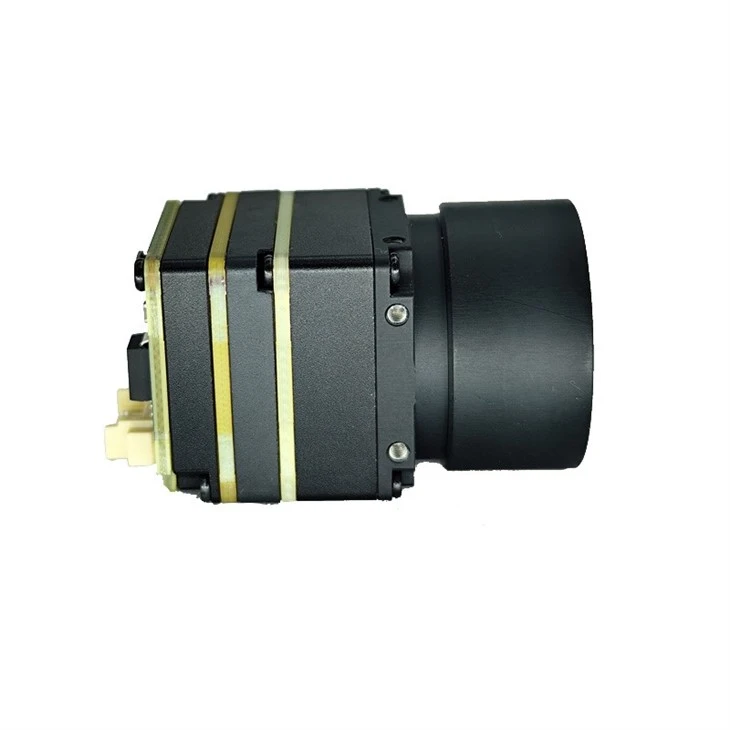

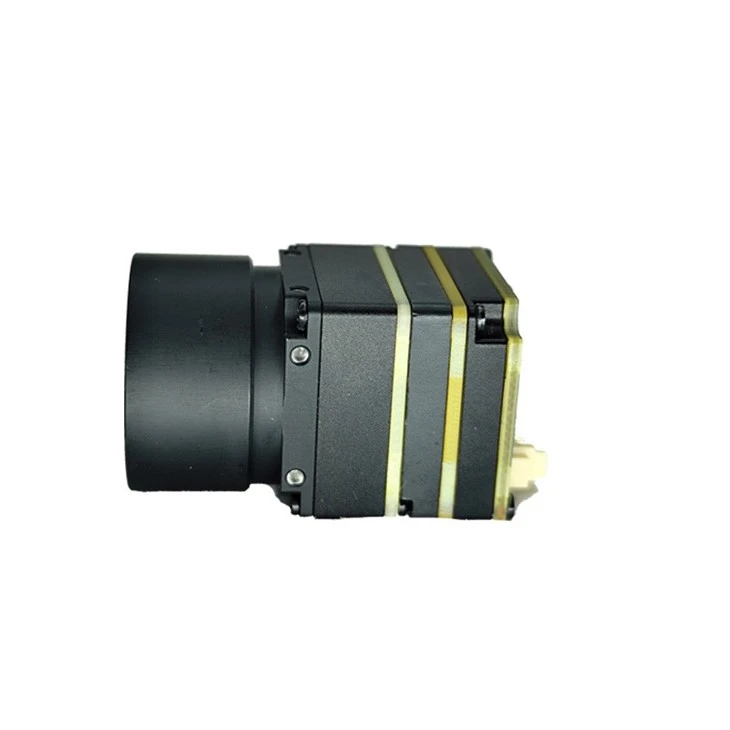

The FPV thermal camera module is a miniature uncooled infrared thermal imaging module with superior SWAP performance, designed specifically for size, power consumption, and price-sensitive FPV applications. It features small size, light weight, low power consumption, super-resolution, clear images, and standard interfaces, offering a high-performance, cost-effective solution, particularly focused on the FPV thermal imaging camera market.
These modules have a wide range of applications, including smart manufacturing, security and control, public services, chemical industry, new energy, energy and metallurgy, and outdoor scenarios.
We also provide end-users with customized integrated optoelectronic systems and solutions, developing a series of products for various industries, including outdoor, security, industrial temperature measurement, optoelectronic pods, and gas detection. These can be applied to power detection, outdoor observation, forest fire prevention, gas leak detection, fire early warning, key area security, circuit testing, and warehouse management.
Products Parameters

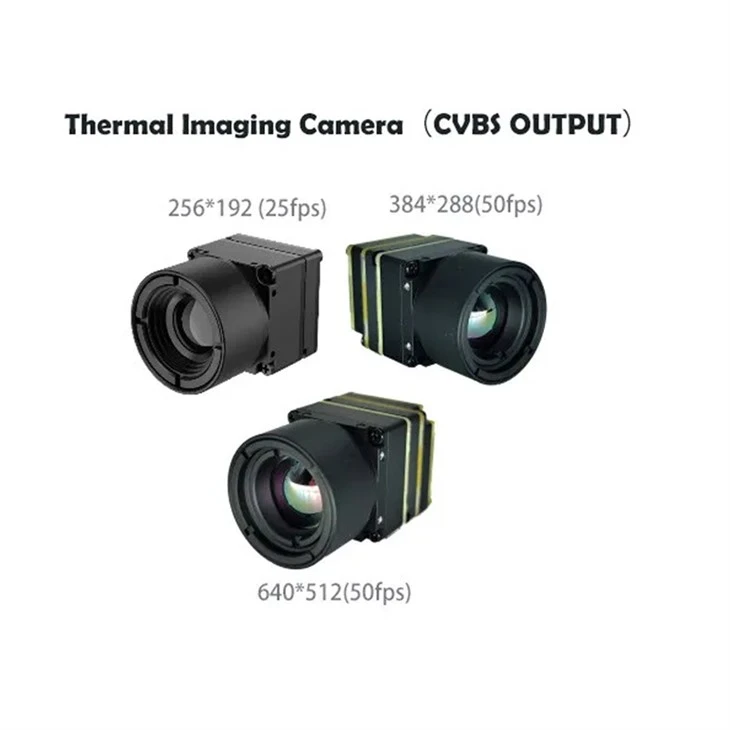

fPV Thermal Imaging Camera(CVBS OUTPUT)
multiple colors for option.
| Model |
zK-TC640
(JS-MINI640-9)
|
ZK-TC384
(JS-MINI384-9)
|
ZK-TC256
(JS-MINI256-9)
|
| products |
 |
 |
 |
| resolution | 640*512 | 384*288 | 256*192 |
| Effective Frame Rate | Vanadium Oxide Uncooled Infrared Focal Plane Detector | Vanadium Oxide Uncooled Infrared Focal Plane Detector | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
| Pixel Pitch | 50fps | 50fps | 25fps |
| NETD | 12μm | 12μm | 12μm |
| Spectral Band | 40mk | 40mk | 40mk |
| Lens Parameters | 9.1mm F1.0 | 9.7mm F1.0 | 4.0mm F1.0 / 6.8mm F1.0 9.7mm F1.0 |
| FOV(H*V) | 9MM：48.3°(H) ×38.6°(V) | 9MM：26.46°(H) ×19.81°(V) | 4mm：45°(H)×33°(V) 6.8mm：26°(H)×20°(V) 9.7mm：18.1°(H)×13.6°(V) |
| Polarity/Palette | White heat, black heat, fusion, iron red, fusion | White heat, black heat, fusion, iron red, fusion | White heat, black heat, fusion, iron red, fusion |
| Power Supply Input | 5V-16V | 5V-16V | 5V-16V |
| Dimensions (without lens) | 20mmx20mm | 20mmx20mm | 20mmx20mm |
| Operating Temperature | -40℃～+80℃ | -40℃～+80℃ | -40℃～+80℃ |
| Storage Temperature | -50℃～+85℃ | -50℃～+85℃ | -45℃～85℃ |
Application Products
customized camera mechanisms and lenses, multi-functional thermal imagers, personalized integrated optoelectronic systems and solutions.
01
Defense FPV Drones
02
Thermal Imaging Handheld
03
Spherical Camera Serial
04
Light Pod Serial
widely used in fields such as artificial intelligence, semiconductors, outdoor night vision, industrial temperature measurement, Internet of Things, environmental protection, drone payloads, and driver assistance.
05
Vehicle-Mounted LiDAR
06
Gimbal Camera Serial
07
Temperature Measurement
08
Gas Detection Serial
Application Scenarios
Outdoor Observation
animal observation; outdoor rescue
Security Precautions
border and coastal defense; key area security
Public Welfare
forest fire prevention; fire early warning
Intelligent Manufacture
circuit testing; intelligent warehousing
Chemical Industry
gas leak detection device; wheeled inspection robot
New Energy
lithium battery testing; photovoltaic
Energy And Metallurgy
energy storage station solutions
Public Safety
accident investigation; emergency rescue
FAQ
01. I'd like to buy cheap thermal camera module. Can you recommend one?
02.Can you also make case and cable for product ?
03. I want to use it on my defense vehicle, does this model work for me?
04.Can you tell me tariff number or HS code of the camera module?
05.Can you tell me if this one detect the people or animal ?
