Is your drone's communication being disrupted by jammers during reconnaissance missions? Has a fiber-optic cable break caused mission failure while your fiber-optic drone was in operation? Upgrading your drone with an anti-jamming module will completely resolve these issues.

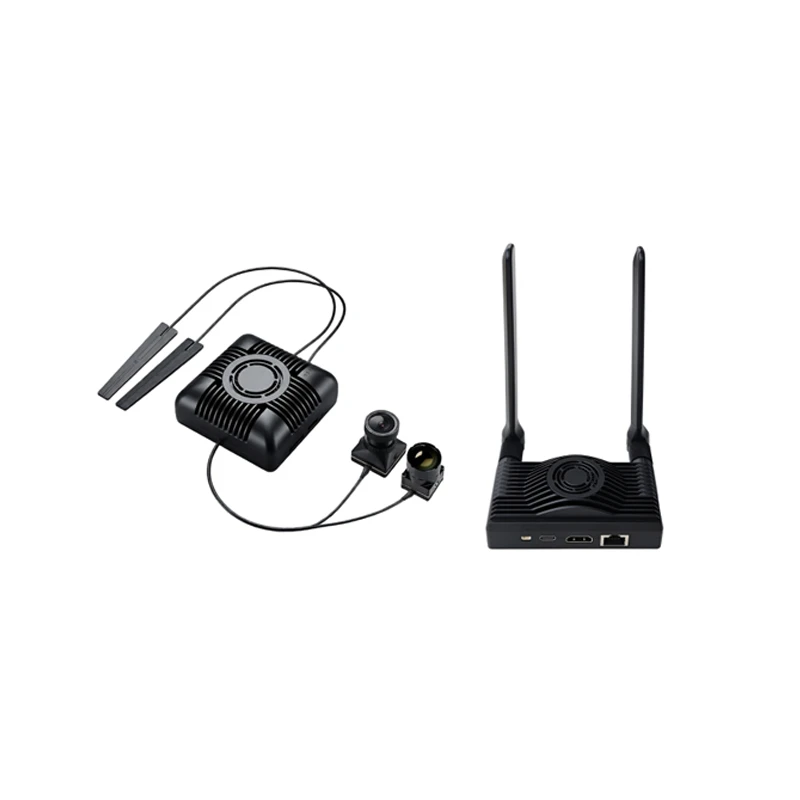

This anti-jamming high-definition digital video transmission system features full-band adaptive frequency hopping. When it detects interference, it automatically adjusts the communication link to ensure stable, interference-free communication. The integrated anti-interference data link combines data transmission and control, comprising both an airborne unit and a ground station. The airborne unit flexibly accommodates optical cameras, delivering 1080p/60fps high-definition video quality and precise target locking.
It is also compatible with infrared thermal imaging cameras, allowing it to penetrate darkness and smoke to detect hidden heat sources. Combining remote control commands, multi-source data, and high-definition image transmission into a single system, all components feature anti-interference capabilities and ultra-low latency. With real-time data transmission over an ultra-long range of 25 km, it supports large-scale missions such as border patrols and long-distance tracking. It withstands high desert temperatures and extreme cold, ensuring worry-free global deployment.
Product Parameters
| Video Transmission System - Air unit | |||
| Model No. | ZK-CLM | Weight | about 100g |
| Material craftsmanship | Aluminum alloy anodization | Dimension |
main unit: 6.5x6.4x2.79cm camera:2.48x1.89x1.89cm |
| Communication bandwidth | Max.25MHZ | Operating voltage | 5-36V(2S-8S) |
| Minimum latency | 100ms(1080P/30fps) | Power consumption | average power ≤10W;peak power≤20W |
| Max effective signal distance | 20km(FCC);10km(CE/SRRC) | Operating temperature | -20 to 55℃ |
| Video Transmission System - Remote Control unit | |||
| Dimension |
main unit: 10x4.78x3.13cm antenna:16.03x2.7x1.8cm |
Weight | 176g |
| Operating humidity | ≤85%RH(non-condensing) | Protection level | IP44 |
| Antenna | dual antennas, 2T2R | Storage temperature | -20 to 65℃ |
Product Application
FPV Full-Band Anti-Jamming Data Link-25 km
FPV Anti-Jamming Retrofit Solutions
Video Transmission System Application
Connecting the ground unit to an RC transmitter (TX12, T14, etc.) and an HDMI display simulta-
neously enables flight control + real-time video transmission.
Integrated Data Video Control Application
Connecting the ground unit to an HDMI display or FPV goggles enables real-time video trans-
mission to suit different operational habits.
Robot Dogs
Robot dogs, robots, and other re-
mote-control terminals.
UGVs And USVs
Not only for UAVs, but also applicable to UGVs, USVs and other similar AI drone products.
Why Choose ZK-CLM Video Transmission System ?
The FPV retrofitted with ZK-CLM video transmission system establishes comprehensive advantages over traditional FPV,fiber-optic FPV, and other frequency-hopping solutions in core dimensions such as anti-jammingcapability, operational radius, and maneuverability.
| Solution | Intlbit Retrofitted FPV | Traditional FPV | Fiber-Optic FPV | Traditional Frequency Hopping FPV |
| Anti-jamming Technology | full-band adaptive frequency hopping | fixed frequency transmission | physical medi- um transmis- sion, immune to electromagnetic interference. |
hopping via preset sequences |
| Technical Features | automatically switches to the optimal channel in mil-liseconds when interference occurs; the unpredictable frequency-hopping pat-tern achieves true "jammer immunity." | jammers can quickly lock and suppress; once locked, the connection is lost. |
the fiber itself is in- terference-free, but the wired link be- tween the ground unit and the pilot can still be attacked or severed. |
frequency-hopping patterns can be intercepted and analyzed;once cracked, they can be suppressed synchronously. |
| Operational Radius | 25km | 1-5km | depends on fiber length | 5-10km |
| Maneuverability | high | high | low | low |
| Stealth | high | high | low(fiber is visible and prone to tangling) | high |
| Complex Terrain Adapbility | high | high | low(can't pass through obstacles) | high |
| Environment Adaptability | strong(full-band adaptive frequency hopping,fearless in jammed environments) | weak(loss of connection upon jamming) | medium(fiber immune to jamming,but manuverability is restricted) | medium(handles low level simple interference but can't resist professional jamming equipment) |
| Operational Description | no physical constraints:capable of various high-maneuverability actions, meeting missionneeds such as border patroland long-distance tracking. | visual Line of Sight(VLOS) flight; signal attenuates severely beyond range. | fiber drag severely limits the flight path; cannot pass through obstacles or perform maneuvers-like dives or rolls. |
significant signal attenuation at long distance. |
FAQ
01.Is this FPV drone module universal ?
02.Can you conduct a demo ?
03.Is it easy to install ?
04.Is there a fee to be your exclusive distributor ?
